| Brand Name: | Cheebo |
| Model Number: | CBLWH-20 |
| MOQ: | 1 set |
| Price: | NEGOTIABLE |
| Packaging Details: | Marine moisture-proof wooden case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, |

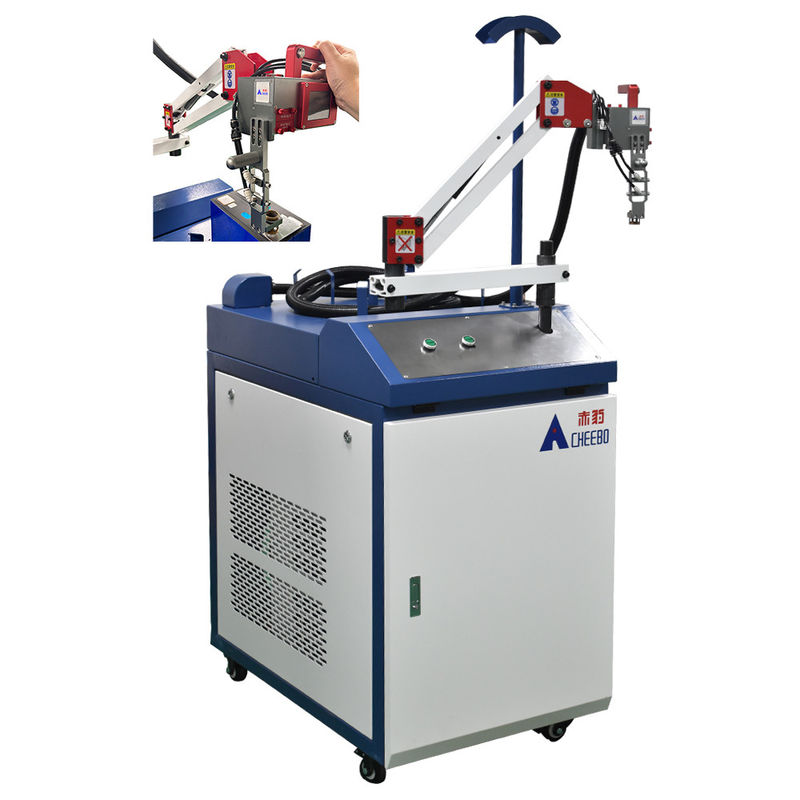

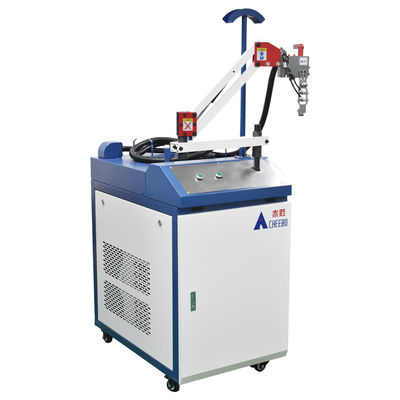

XY galvanometer adopts a Φ 20mm design, with a large lens size and low energy density
Built in motor driver to prevent external drivers from interfering with electricity
The interference introduced by the long signal line of the machine ensures more stable operation
Built in 8 processes, 5 differentiation modes, offline self operation
The welding head comes with a touch screen, integrating laser slow rise and fall, trajectory selection, and differentiation control in one
The collimation, focusing, and protective lenses are all designed in a drawer style for easy replacement
The welding head is equipped with an emergency stop button to ensure laser safety in case of emergency
Mechanical fully enclosed design
Full body water cooling design, no exposed water pipes, simple water connection
Fully enclosed design to prevent dust contamination of the optical components.

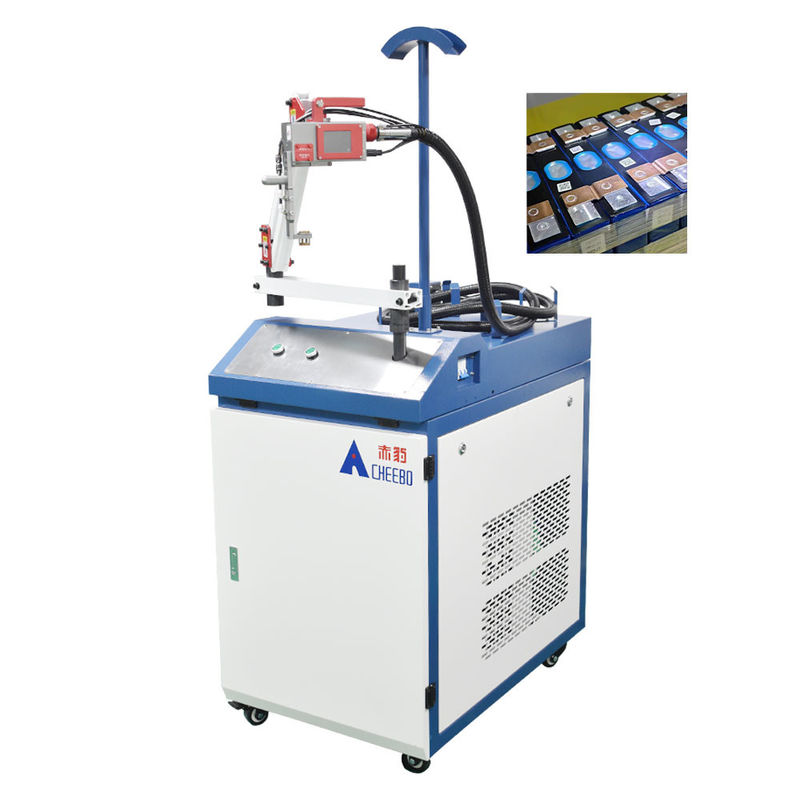

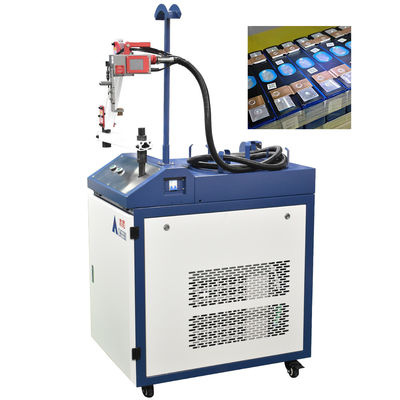

Laser welding has the advantages of high precision, high efficiency, and high reliability, which can meet the high requirements
of welding quality for lithium battery modules.
|
TECHNICIAL PARAMETERS
|
|||
|
ModelLaser power:
|
3000W (max)
|
||
|
Output fibre length:
|
15m (standard)
|
||
|
Focus distance:
|
Standard F=200mm
|
||
|
Working mode:
|
Continuous/modulated
|
||
|
Laser wavelength:
|
1070±10nm
|
||
|
Machine weight:
|
200KG
|
||
|
Welding speed range
|
0-20000mm/s
|
||
|
Welding thickness:
|
1-2.5MM
|
||
|
Cooling power:
|
2200W
|
||
|
Input power:
|
3.5KW
|
||
|
Working environment humidity range
|
85%
|
||
|
The Whole Machine Size
|
WLH (1100*950*600mm)
|
||
No need to fumble with focus adjustments,avoid poor welding due to improper focus,avoid laser damage due to
misaligned focus.
2. Easy to operate
Welding head with touch screen,Integration of laser slow rise and fall, trajectory selection,dissimilarity control in a single unit.
3. Laser welder
Single module 1.0 μ m continuous fiber laser, utilizing the latest technology and optimized design. It has the characteristics of
high electro-optical conversion efficiency, long lifespan, safety and reliability.
The whole machine has good output beam quality, strong anti reflection ability, suitable for processing different materials, and remote real-time monitoring.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
Video
Video
Video
|
