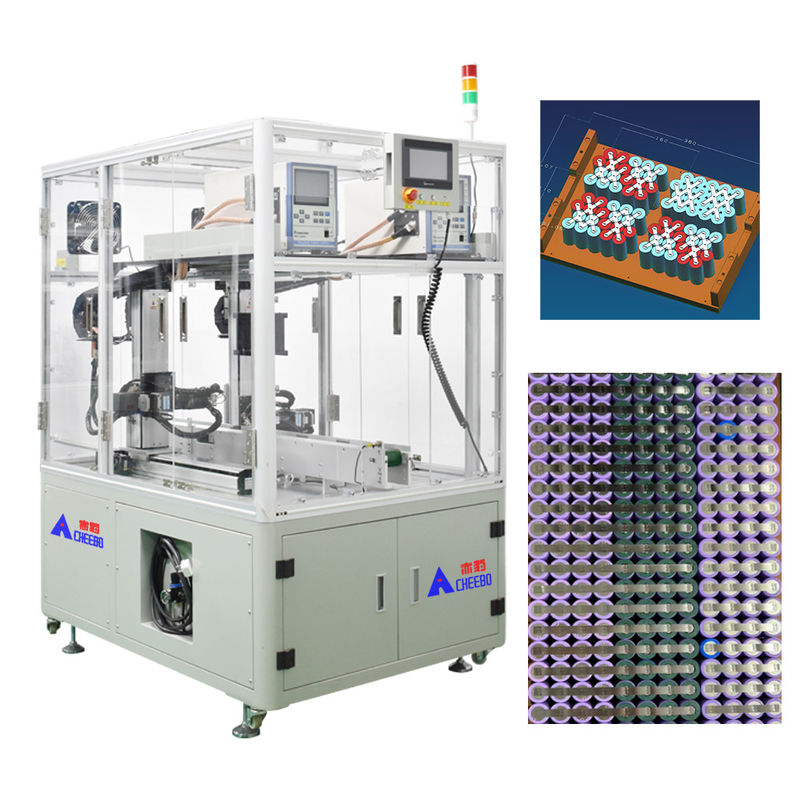

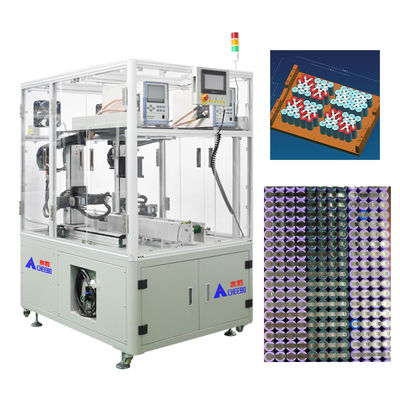

Suitable For Mass Production Of Multifunctional And Efficient Lithium Battery Spot Welding Machines

● Automatic lithium battery spot welder with self-developed electric precision rotary welding head, which can be rotated 135° to weld, suitable for all kinds of irregular nickel sheets with anti-sticking pin effect.

● CBMN8-5036 double-sided lithium battery spot welder can be operated independently on the left and right platforms, and the welding path can be set independently according to different welding needs.

● CBMN8-5036 8-axis lithium battery spot welder has the function of automatically detecting whether the fixture is in place or not.

● Blow-up welding and false welding equipment automatic alarm, automatic area replenishment welding, single-point replenishment welding manual adjustment.

● Installation of origin reset function, i.e. abnormal problems caused by downtime during spot welding, you can manually return to the origin, turn on the breakpoint processing, and weld from the previous welding position when restarting.

● With breakpoint processing function, if the spot welding process breaks down, it can be re-opened to continue spot welding from the last spot welding position, or manually enter the current spot welding position in the interface to start the automatic continuation function.

● The equipment adjustment touch screen adopts the flexible wire harness method, which can be stretched and moved to the debugging position for debugging, and can be fixed in the fixed position during normal production.

● With soldering pin management function, can control the service life of the soldering pin and the number of times it is used.

● Can set 16 groups of spot welding conditions, suitable for welding of different materials.

● Adopt HIWIN module, high precision, low noise, smooth sliding and durable.

● Adopt straight-through design structure (i.e. forward and forward out, or forward and backward out), which can be directly connected to the production line for use. After welding, it can be taken out at the side of the production line.

● Lithium-ion battery assembly equipment adopts high-definition LCD touch screen, simple human-machine interface, easy to operate. Manual programming, CAD drawing, spot welding path import, fast programming. Easy to learn, ordinary workers can set up.

● Aluminium alloy skeleton, imported acrylic protection plate, beautiful, strong sense of technology, visual operation to improve the production safety factor.

1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter settings are easy to learn. Support manual programming, CAD maps, import solder joint paths, for fast programming.

2. Cooling system:

Water circulation heat dissipation, instantaneous high-current welding, the welding head always maintains a constant temperature, effectively reducing the loss of welding pins and improving the welding effect.

3. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

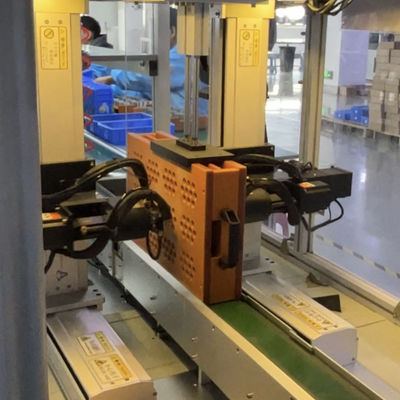

The battery cell/bracket/battery nickel piece is loaded into the fixture -- the fixture is placed in the sensing position -- the device automatically spot

-welds the device to the extraction position (select the discharge method: forward forward out, forward forward out) -- the battery pack is removed

from the fixture -- and the next production cycle is carried out

• The same battery pack (manual programming) can only be horizontal spot welding or vertical spot welding, and can not have both horizontal and vertical spot welding in the same group of batteries. (If multiple spot welding specifications are required, please do CAD programming.)
• The same battery pack can only choose flat pin spot welding or convex spot welding
• In a battery pack, the spot welding surface must be flush and of the same height
• Clean the end face of the spot welding needle regularly
• The whole machine adopts computer control system. Do not link USB device and Internet at will to prevent data loss

1. Energy storage battery pack 2. Electric bicycle battery pack 3. Power tool battery pack

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
