Automatic QR Code Sorting Battery Cell 18650 21700 Single Cylindrical Lithium Battery Pack Sorting Machine

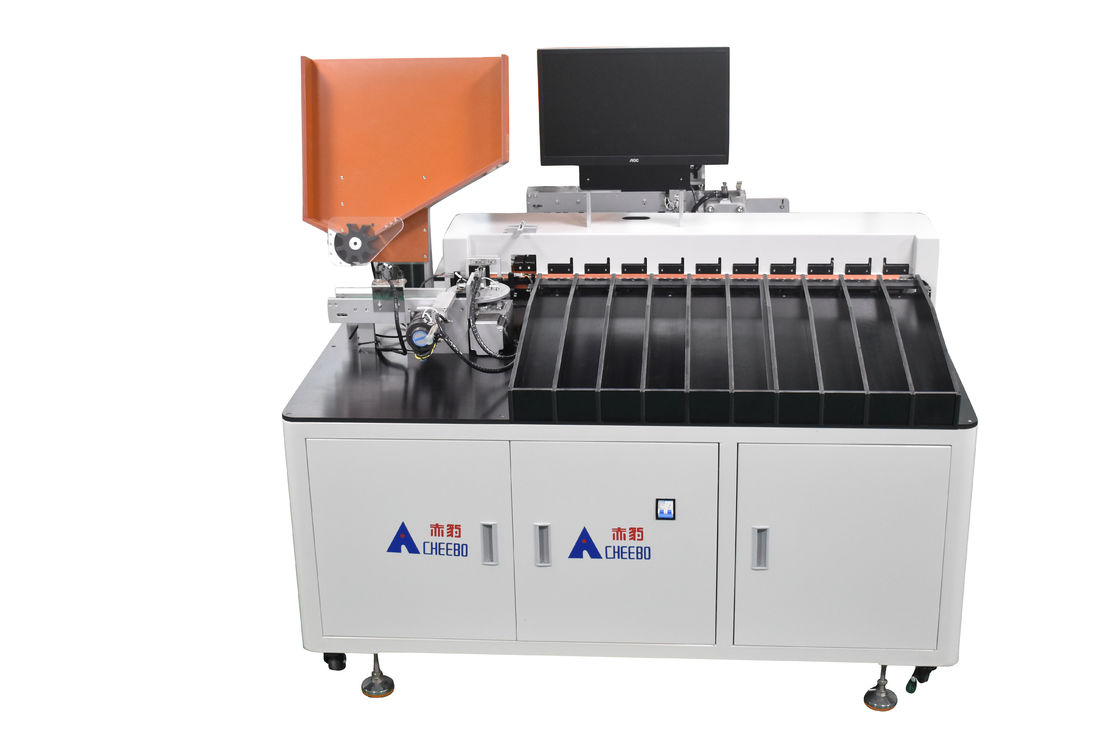

The CBNFX-10 18650-32700 cylindrical battery testing and sorting machine is an automatic sorting device suitable for voltage/internal resistance testing of long cylindrical battery cells of various specifications. 9 good product grades, 1 defective product grade
Applicable battery cell models: 18650/18700/21700/26650/26700/32650/32700, etc., can complete the sorting of about 3000 cylindrical finished battery cells per hour. Installing a scanning mechanism can achieve data query for a single battery cell. The mechanical structure design is simple, and the system testing performance is stable.

The battery cell is placed in the silo - the pulsator disturbs the flow of the battery cell to the conveyor belt - the battery cell is conveyed to the preparation position - the displacement cylinder pushes the battery cell to the steering wheel - completes the transposition - pushes it to the testing position - the testing needle presses the battery cell - the tester reads the data - transmits it to the computer - the battery cell is conveyed to the scanning position to complete the scanning - the computer performs gear matching - the battery cell is transferred to the sorting belt - the sorting belt runs to the designated gear - the gear cylinder acts to push the battery cell out.

1. Loading mechanism
Equipped with scanning function, the upper computer can record and display sorting data and query operations in real time. The diameter range is 18-32MM, and the length range is 65-70MM, which can be used for sorting.



2. Operating interface
By adopting the control method of industrial controller+industrial computer, precise control and real-time monitoring can optimize the production process, improve production efficiency and quality.



3. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.

Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.


Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
