| Brand Name: | CHEEBO Technology |
| Model Number: | CBLQ-5B |
| MOQ: | 1 set |
| Price: | NEGOTIABLE |
| Packaging Details: | Marine moisture-proof wooden case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, |

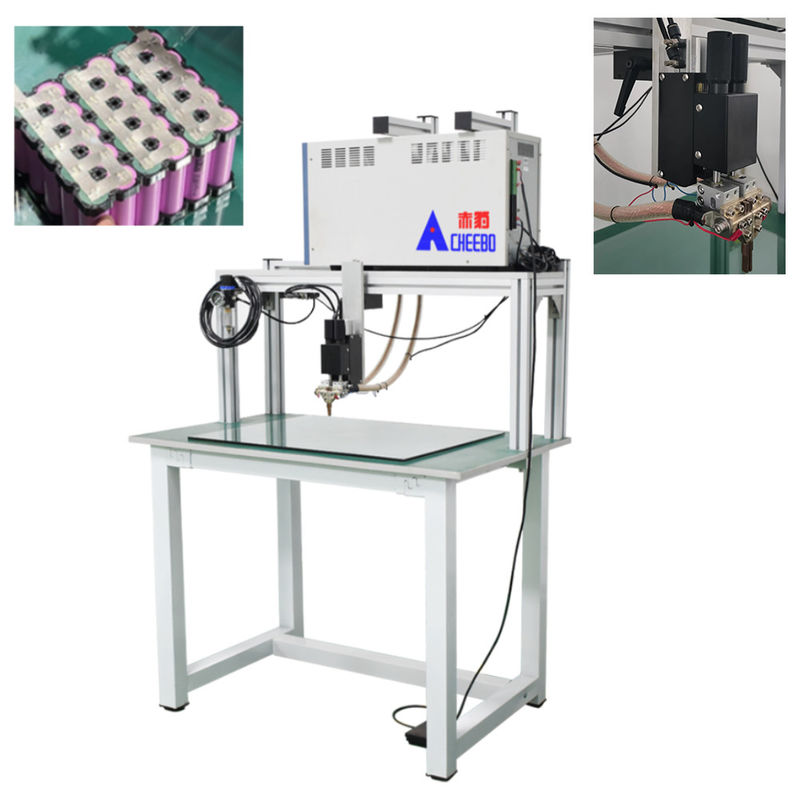

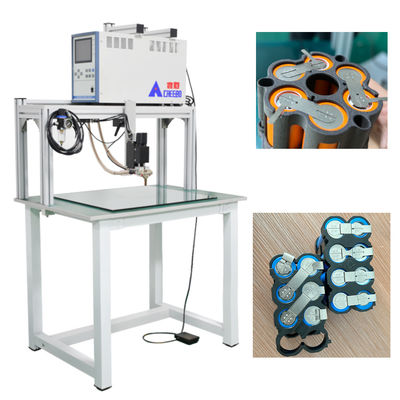

● Using independently developed precision welding head, accurate pressure regulation and control.
● The bipolar output eliminates the welding polarity effect, makes the energy on both sides of the electrode consistent, and can effectively eliminate
the phenomenon of welding needle sticking needle.
● In bipolar welding, the welding voltage / current flows from the left needle to the right needle during the first welding, and the
welding energy flows from the right needle to the left needle during the second welding.
● It can be used for welding with convex needle or pointed needle.
● There are three control modes: constant current, constant pressure, constant current, constant pressure combination mode.
● Built-in pre-check function, which can be used to judge whether the workpiece is electrified before welding.
● The welding current of the lithium battery spot welding machine is switched quickly and effectively through the transistors without a transformer.
● No need for welding transformer, small volume, light weight, beautiful.
● Welding power supply is controlled by switch mode, which can achieve small and efficient welding and high output.
● The welding current of the power supply rises quickly, and can achieve high quality welding in a short time.
● Add the continuous spot welding function to effectively improve the production efficiency.
● Independent research and development of precision welding head, accurate pressure regulation and control.
● Using microcomputer technology control, real-time dynamic monitoring of welding current, voltage, power, resistance waveform.
● 5.7-inch HD LED display, convenient and intuitive adjustment of equipment parameters, and can store multiple programs in advance.
● Thickness of explosion-proof glass, protect the table top from wear when welding, to ensure smooth welding.
● The welding adopts vertical spot welding, manual control of pressure depth.
| Welding thickness | 0.02-0.5MM | Welding power supply | Bipolar transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Electric | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Power on - display 600 OE self-test screen - press the up arrow to enter the system - Place the product to be welded on the table - pedal -
press the welding head - spot welding completed - welding head return
1.Cylinder drive
The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.
2.Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.
3. Bipolar transistor welding power supply
Bipolar welding, welding voltage/current, the first welding from the left welding needle to the right welding needle, the second welding welding energy from the right welding needle to the left welding needle. Welding energy output the most stable power supply, real-time display of welding voltage and current waveform, current rise fast, can achieve high quality welding in a short time.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q:What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q :How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
Video
Video
Video
Video
Video
Video
|
