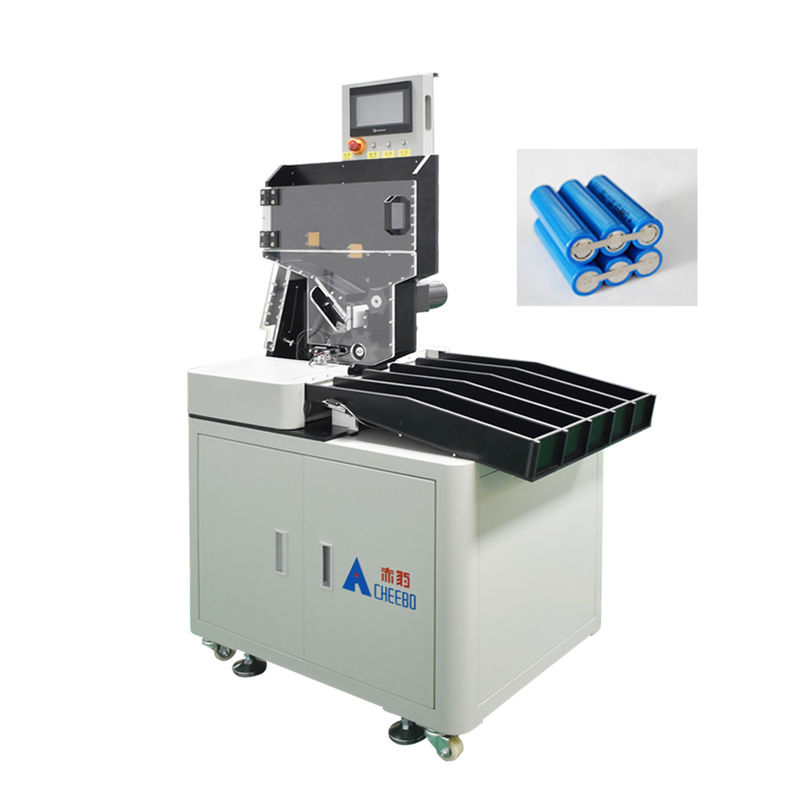

Fully Automatic Precision Detection Comprehensive High-Efficiency Five Level Bttery Cell Sorting Machine

● This battery sorter is suitable for automatic sorting equipment for testing the voltage internal resistance of cylindrical batteries of various specifications.

● Various battery types can be used: 18650/21700/26650/26700/32650/32700 model.

● CBFXH-05 lithium battery separator can separate more than 4,000 cylindrical formed batteries per hour.

● Easy-to-operate interface, with one-key generation function, only need the initial voltage resistance, input the corresponding interval, and the parameter setting can be completed.

● Mitsubishi PLC+ imported Panasonic servo control unit +4 probes design, high-end configuration, stable performance, long service life and low failure rate.

● Using high-definition touch screen computer, the human-computer interaction is simple and convenient.

● The interface connected with the paper machine is reserved, which can be directly connected with the paper machine, saving labor costs.

● PLC+ PC control mode, real-time display by PC, recording cell sorting data.

● Fault information reminding function, fault sound and light alarm, which can quickly diagnose faults.

● It has the function of manual parameter modification, which can fine-tune each gear, and can also be adjusted by one-button modification function.

● Slope design of sorting gear, material opening, convenient material collection and improved production efficiency.

● Aluminum alloy structure, electrostatic spraying process, scratch resistance, rust prevention and antistatic.

1. Sorting data Settings
2. The sorting template is generated
3. Idle times setting
4. Compensation value setting
5. Monitor voltage internal resistance
6. Test pin change

The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --

the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --

the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out

1.On-line mechanism

The positive pole highland barley paper machine can be connected and pasted according to the production process needs. Save costs and meet diversified production.

2.Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.

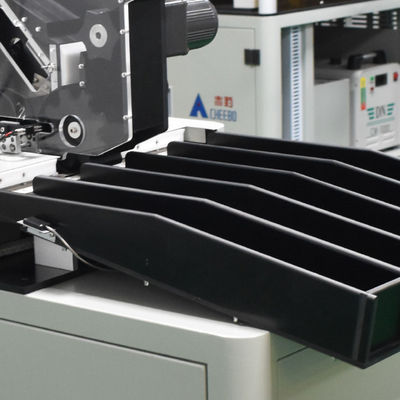

3.Gear italic design
5 speed italic design, open gate receiving is simple and convenient, saving time and labor, effectively improve production efficiency.

Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
