Cell Testing Machine
>

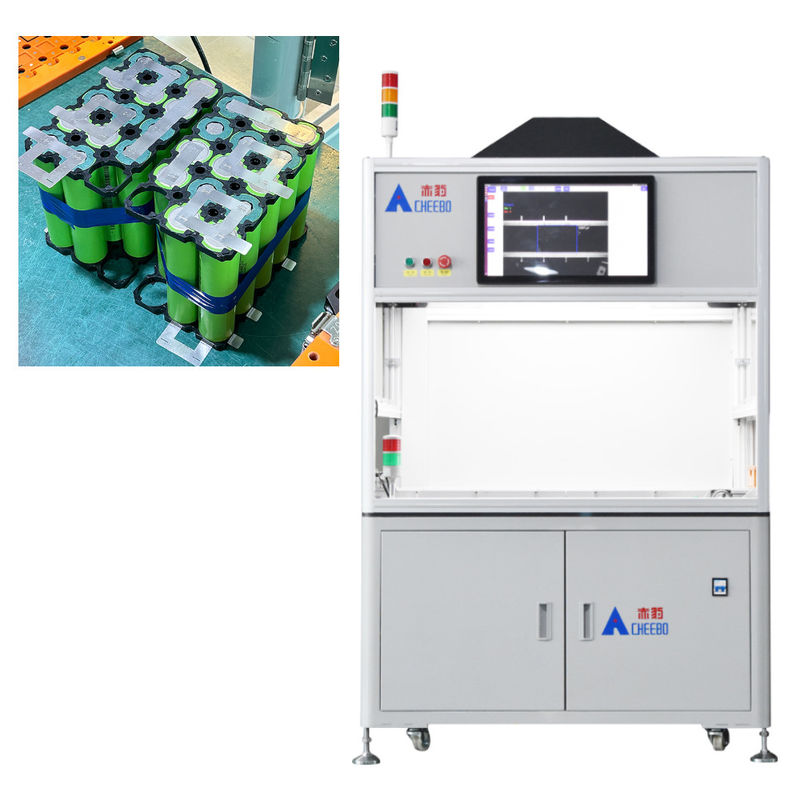

CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment

CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment

Brand Name: CHEEBO Technology
Model Number: CBCCD-2540
MOQ: 1 set
Price: NEGOTIABLE
Packaging Details: Marine moisture-proof wooden case
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE certification
Weight:
230KG
Dimensions:
1200*1000*1800MM
Transmission Mode:
Belt Transmission
Display:
Graphical Display
Product Name:
Positive And Negative Detection Equipment
Power:
220V50/60HZ
Supply Ability:
15 Set/Sets per Week
Highlight:

Lithium Battery Polarity Automatic Detection Equipment

,

Multi Specification Polarity Automatic Detection Equipment

,

High Precision Polarity Automatic Detection Equipment

Product Description

CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment


Lithium battery polarity automatic detection equipment introduction

● A multi-purpose visual inspection system for CCD visual inspection equipment based on CCD industrial camera using machine vision technology.


● It is suitable for measuring the polarity of a variety of batteries, saving labor costs and being able to carry out highly repetitive work.


● CCD vision inspection can work stably for a long time, with good reliability and high detection accuracy. It has the function of manual debugging, which can be used for fine-tuning each inspection and saving the parameters of the monitoring area, and can also be adjusted for using the overall offset function.


● With counting function, you can count the number of OK/NG.


● With the function of fixture automatic in-place detection.


● Support multi-lock board comparison, and support up to 100 sets of templates.


● The design with adjustable lighting height can be used in various lighting environments.

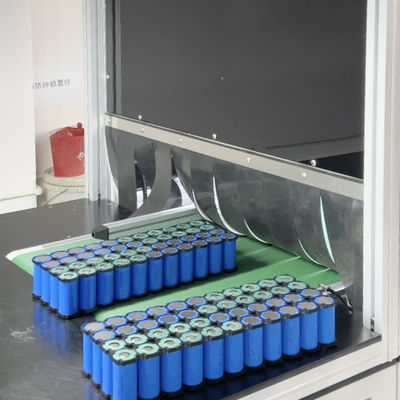

Lithium battery polarity automatic detection equipment device action flow description

The detection workflow is normal: the fixture feeds from the feeding port of the belt line - the belt stops running when it reaches the detection position--Waiting for detection - normal detection - manually close the fixture cover - click the button to close the cover - the fixture flows out NG detection workflow: The fixture feeds from the belt line inlet - reaches the detection position, the belt stops running - waits Detection - Detection NG - Determine problem points based on software diagram - Perform manual intervention - Click manual Start detection button - Check OK - Manually close the fixture cover - Click the close cover completion button - Fixture outflow



Lithium battery polarity automatic detection equipment technical specification



Testing range 250*400MM Lens pixel 500W pixel HD lens
Detection efficiency 3-5s/PCS Accuracy 99.99%
Transmission mode Belt transmission Weight 150KG
Display mode Graphical display Dimensions 1200*1000*1870MM
Device system algorithm CHEEBO CCD special system algorithm Application scenario Polarity detection of various cells
Detection algorithm Positioning, measurement, flatness, contrast, presence or absence Reminder Sound and light alarm, wrong position color change




Lithium battery polarity automatic detection equipment application case



1.Electric bicycle battery pack 2. Energy storage battery pack 3. Power tool battery pack

CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment 0CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment 1CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment 2



Lithium battery polarity automatic detection equipment function Introduction


3. 19 "HD touch screen
Clear display, mouse and keyboard configuration, easy to operate, simple and fast, only industrial control system, can store all the test results, convenient verification of data.
CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment 3



2.Comprehensive multi-angle fill light, HD photo head, industrial-grade camera with high detection accuracy, fast speed and high efficiency, zero error.

CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment 4

FAQ



Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.





Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

CCD Visual Fast And High-Precision Multi Specification Lithium Battery Polarity Automatic Detection Equipment 5

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
