| Brand Name: | CHEEBO Technology |
| Model Number: | CBLQ-23 |
| MOQ: | 1 set |
| Price: | NEGOTIABLE |
| Packaging Details: | Marine moisture-proof wooden case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, |

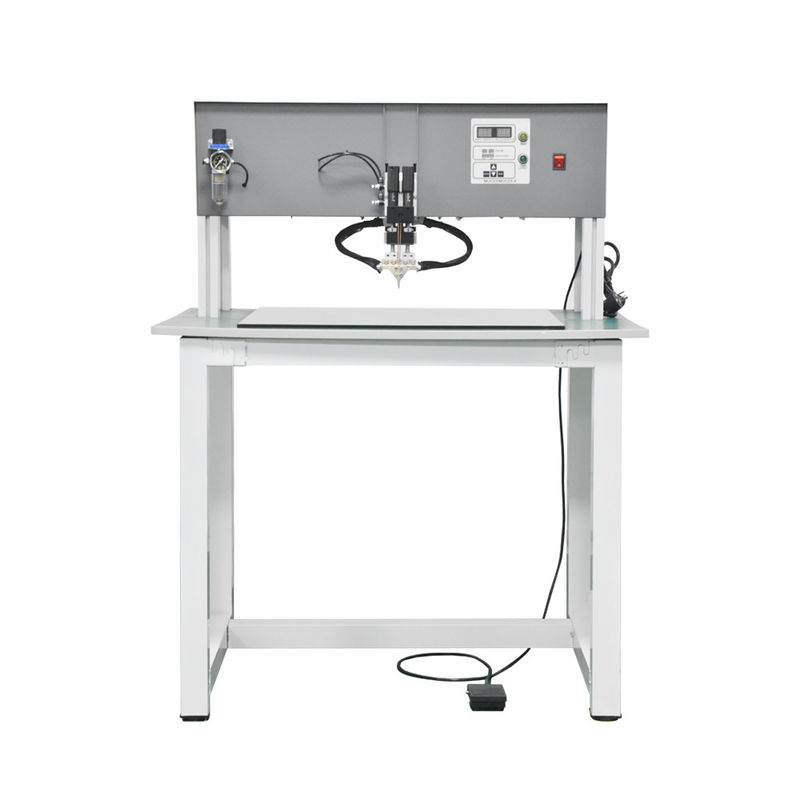

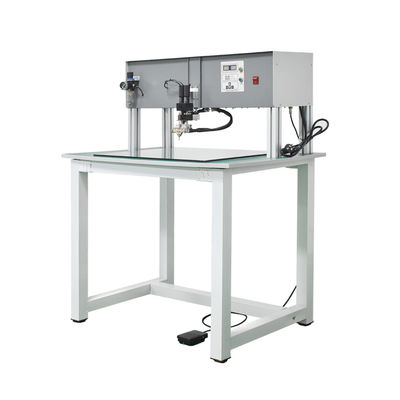

●Product application scope: Welding of power lithium-ion battery packs, welding of 3C lithium-ion battery packs, welding of nickel hydrogen batteries Welding of battery packs, small hardware components, electronic and electrical components, wire terminals, stainless steel components, Welding of metal jewelry, welding of copper products, welding of aluminum products, etc. Also applicable to welding work such as products Maintenance and sampling.
● Multi pulse adjustment can improve the output energy waveform of welding, enhance welding ability, and make the welding point firm and beautiful.
● Self-developed precision welding head, precise pressure adjustment control.
● Microcomputer technology control, control voltage grid, automatic tracking compensation.
● The welding machine can pre-store multiple programs, welding different materials can be changed, call different energy for welding.
● High quality tempered glass is used to protect the desktop from wear during welding.
● Vertical spot welding method for spot welding, manual control of the depth of pressure.
● Compact structure, small volume, large power, large industrial circuit design, safe and reliable welding process.
| Welding thickness | 0.02-0.15MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 130MM (Maximum pitch adjustable) |
| Supply current | 2800A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 7KW | Equipment size | 600*900*1150MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
1. Multi-pulse welding power supply
Exclusive output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm solder joints, no virtual welding, small burning, and excellent surface quality.
2. Pneumatic precision welding head
Horizontal welded structure, double track guide rail design, adjustable left and right pressure separately. Built in pressure sensor for precise control of stable pressure application.
3. Cylinder drive
The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.
Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Place the product to be welded on the desktop -- Step on
the pedal -- push down the welding head -- spot welding completed -- return the welding head
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
