| Brand Name: | CHEEBO Technology |
| Model Number: | CBMN-1810 |
| MOQ: | 1 set |
| Price: | NEGOTIABLE |
| Packaging Details: | Marine moisture-proof wooden case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, |
● Operation steps: feeding, feeding, grabbing, welding, discharging.
● Single row battery pack welding, double-sided spot welding with high degree of special automation, automatic belt cutting, reserved welding positions for positive and negative terminals, polarity conversion combination layout
● Randomly combine 12 batteries in series/parallel, such as 1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc
● Welding adopts a dual welding head workstation, with both positive and negative electrodes welded simultaneously to improve production efficiency.
●After setting the parameters, place the entire box into the battery device and directly weld the product.
● It can weld 2600 batteries per hour, with high production efficiency, saving one person the time to operate the entire machine.
● Adopting an automatic welding device, there is no need for manual placement of lenses, which is simple, convenient, and labor-saving. Can be used for pre welding rows of multi row battery packs.
● All parts of the whole machine are made of imported brands, with a long service life and low failure rate of alloy skeleton. Imported acrylic protective plates have a beautiful and elegant technical sense, intuitive operation, and improve production safety factor

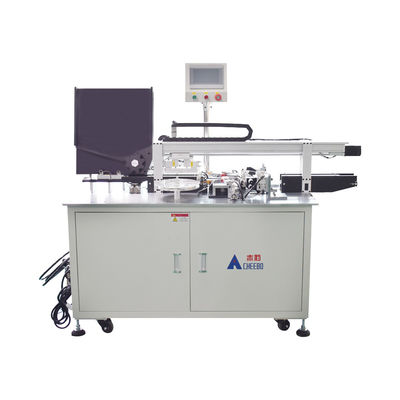

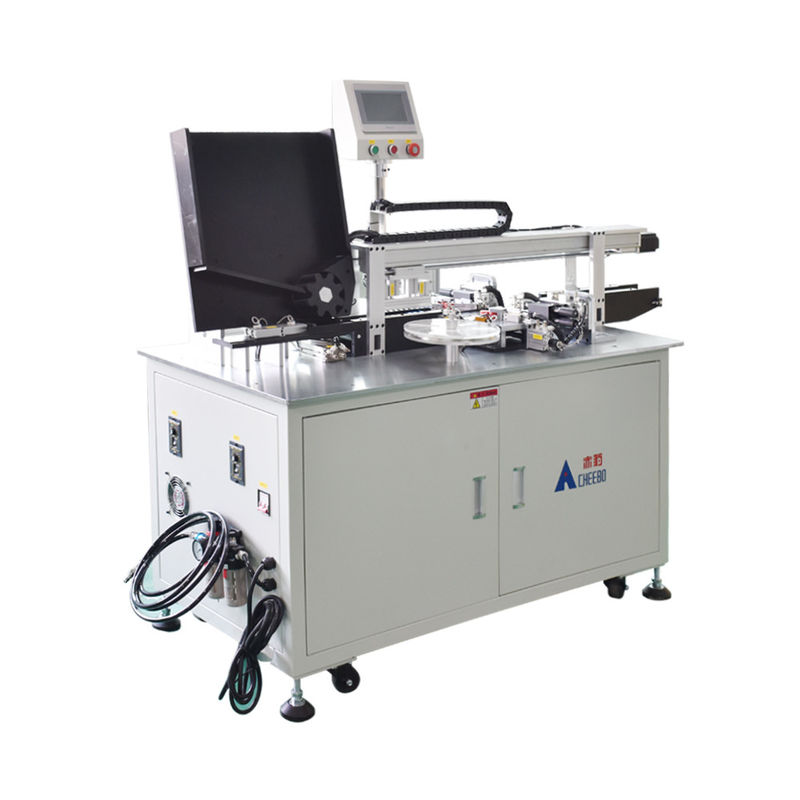

● Suitable for lithium battery assembly, it is a series parallel welding equipment for 18650 single row batteries.
●
The device has positive and negative pole flipping function and automatic grabbing function, and the length of the nickel sheet can be freely set.
Suitable for fields such as vacuum cleaner batteries, walkie talkie batteries, Bluetooth speaker batteries, etc.
● The system adopts a liquid crystal display, which is easy to operate, stable and reliable, and meets the standard requirements of the equipment for the environment. It plays an important role in improving the operation mode and enhancing the safety of equipment operation. It is an effective equipment for successfully solving single row spot welding.
| Production efficiency | 2600PCS/H | Welding source | Multiple-pulse |
| Welding thickness | 0.02-0.2MM | Dimensions | 1800*1150*1800 |
| Working air pressure | 3.0-6.0Mpa | Mode of movement | Automatic continuous |
| Grab cell | 10PCS (up to 12PCS) | Welding pressure | 5KG/F(adjustable) |
| Power source specification | 220V 50/60HZ | Type of cooling | Forced water circulation cooling |
| Electrode material | Copper alumina | Weight | 330KG |
1. Wave wheel transmission
Automatic transmission of cells to improve production speed.
2. Random combination
In series/parallel 12 cells,1S12P-2S6P-3S4P-453P-6S2P-12S1P, etc
3. Double side welding
Single row battery pack welding, special highly automated double-sided spot welding, automatic tape transfer and cutting, reserved welding positions for both positive and negative electrodes, polarity conversion combination layout
3. Double side welding
Single row battery pack welding, special highly automated double-sided spot welding, automatic tape transfer and cutting, reserved welding positions for both positive and negative electrodes, polarity conversion combination layout
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
