| Brand Name: | CHEEBO Technology |
| Model Number: | CBLDD-5A |
| MOQ: | 1 set |
| Price: | NEGOTIABLE |
| Packaging Details: | Marine moisture-proof wooden case |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, |

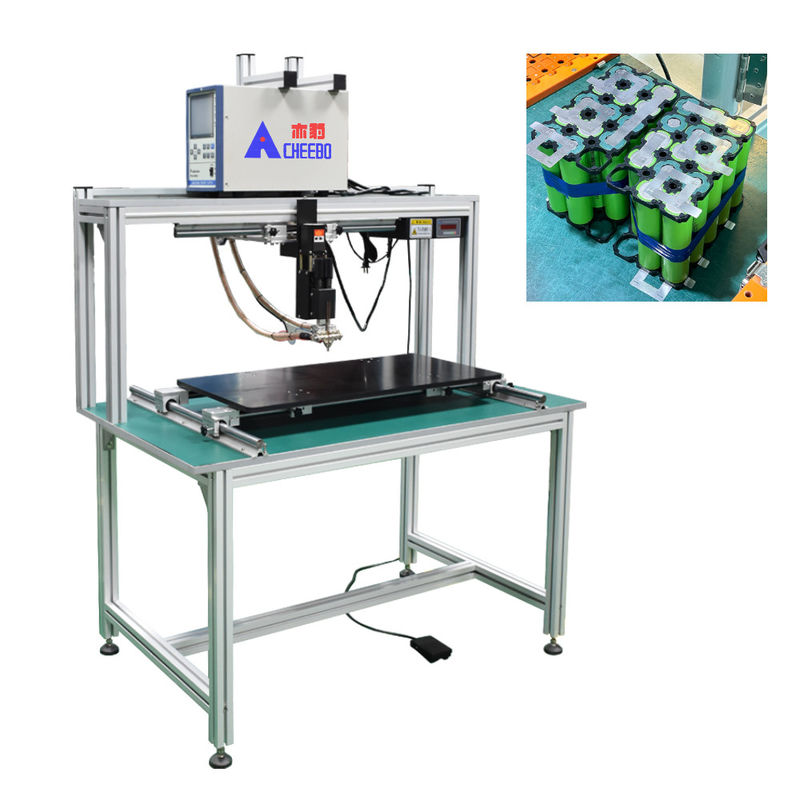

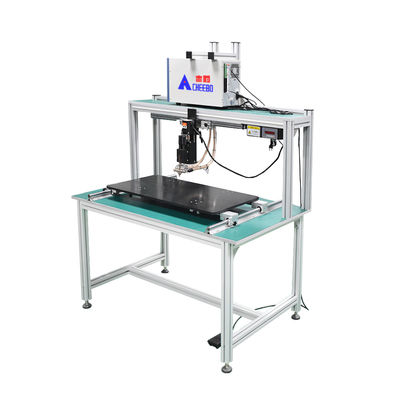

● This lithium battery spot welding machine adopts transistor welding power supply, the current rises fast, and achieves high quality welding in a short time.
● Three welding modes can be adjusted: constant voltage, constant current and constant voltage current.
● Compact power supply, small size, large power, no need to weld transformers.
● Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.
● 5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored.
● Pure electric no cylinder, low noise, fast speed, stable pressure, does not affect the welding quality due to external air source interference.
● Independently developed precision welding head, the pressure can be accurately adjusted and controlled according to the thickness and material of nickel sheet to achieve precision welding.
● Double guide rail thickening, the chassis is stable and firm, not easy to deformation.
● Welding The welding head can be moved up and down, and the welding head can be moved according to the size of the battery pack for easy welding.
● The table guide rail can be pushed and pulled left and right, and the stroke is 750*350mm.
● The spot welding process does not need to push the battery pack, saving energy and fast, the platform can carry 60KG, especially suitable for large battery pack welding.
● The guide rail is convenient to move, saving time and labor, greatly shortening welding time and improving manual welding speed.
● Energy saving and environmental protection, stable and efficient, low power consumption of equipment.
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Welding thickness | 0.02-0.5MM | Welding power supply | Transistor |
| Supply current | 5000A | Welding speed | 180P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| XY axis travel | 750*350MM (Manual slide) | Welding pressure | 700*1200*1450MM |
| Driving mode | Driving mode | Machine Weight | 70KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
1.Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.
2.For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.
3.Clean the end face of the spot welding needle regularly.
1. Electric control
No additional air source required, low noise, fast welding speed, and stable pressure.
2. Guide rail design
Double rail thickened design, stable and firm chassis, not easily deformed. The guide rail can move left and right, and the welding head is also equipped with a guide rail design, suitable for assembling and welding large batteries, saving time and effort.
3. Transistor welding power supply
Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
Video
Video
Video
Video
|
