| Brand Name: | CHEEBO Technology |
| Model Number: | CBTZ-1821 |
| MOQ: | 1 set |
| Price: | $12,800.00/sets 1-2 sets |
| Packaging Details: | Marine moisture-proof wooden case |

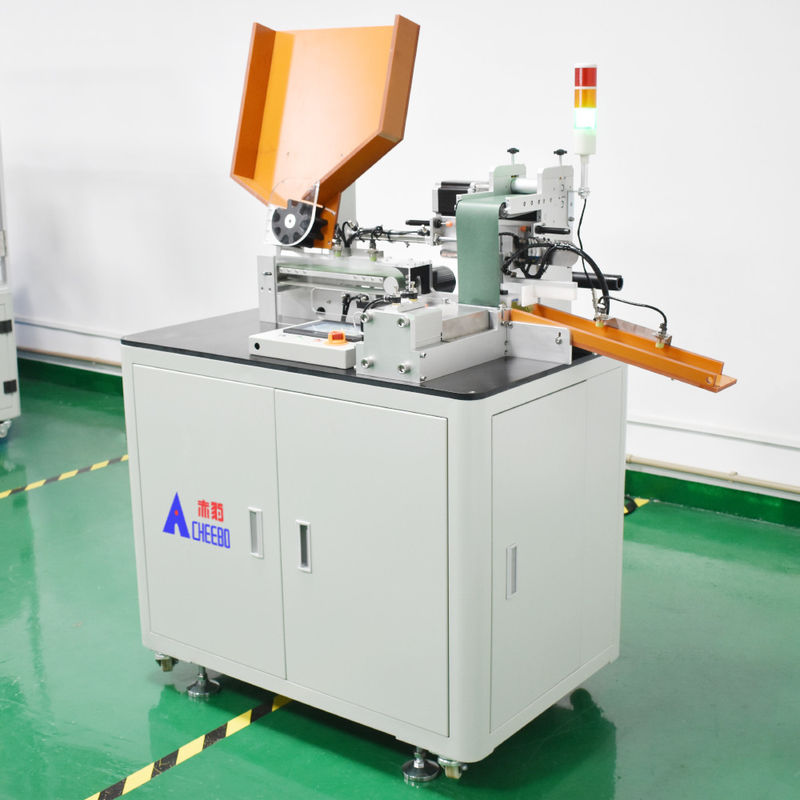

● This sticker machine is controlled by PLC, such as stepping motor and cylinder, to complete the function of sticking highland barley insulating paper on the positive pole of 18650/21700/21650 finished batteries.
● The number of finished cylindrical batteries can be about 4,000 per hour.
● Use a 7-inch high-definition touch screen to monitor the running status of the machine in real time.
● Punching is carried out by using a cylinder-driven cutter, and four batteries are punched at a time. Slices are made of high-speed steel, which has high wear resistance, good finished product quality and high production efficiency.
● Stickers and stamping are stable, with high position consistency and low reject rate.
● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.
● It has the function of cleaning the tailings, and can empty the tailings with one key.
● Compatible materials: highland barley paper, express paper, sticky rice paper, RET protective stickers, etc.
● The mechanical structure design is simple and generous, and the system performance is stable.
| Production efficiency | 60-70PPM | Air source specification | 1/CFM |
| Applicable battery specifications | 18650/21700/21650 | Pass rate | ≥95% |
| Sticker efficiency | ≥60PPM | Transmission mode | Mechanical hand |
| Compatible material | Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc | Maximum impact speed | 99.99% |
| Work method | Stepper motor + pneumatic | Machine Dimensions | 1275*860*1524MM |
| structural material | aluminium alloy | Machine Weight | 150KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical cell sticker |
1.High speed steel cutter
The stamping die is non-adhesive and firmly pasted. The paste position is consistent and does not affect the subsequent welding procedure. Paste 4 cells at one time, high production efficiency
2.Large hopper
Large feeding hopper, slope type hopper, suitable for the whole box feeding, feeding convenient. One-time 300PCS18650 battery cell.
3.Loading mechanism
Ensure that the adhesive material is not affected by the environment. The loading operation is simple.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery type do you want to be compatible with?
3) Paste materials.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q:What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q :How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Video
|
|
